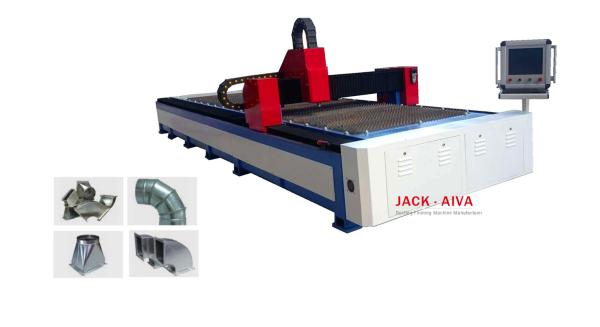

Ductwork Fiber Laser Cutting Machine
Technology Description
- The fiber laser cutting machine produced by our company is designed for thin plate cutting and duct processing:
steel sheet Cutting efficiency and cutting quality are better than traditional plasma.
- The laser cutting headband has a high-sensitivity follow-up system, which automatically follows the height of the cutting steel plate (perfectly cutting the ribbed plate).
- The X, Y, and Z axes are driven by dual linear guides and high-precision AC
servo motors to achieve precise, accurate, and fast cutting requirements. The guide rail and rack are provided with a lubricating oil supply mechanism and a dust cover.
- The control software runs under the Windows XP real-time operating system. The
control software is written according to the requirements of the thin plate cutting process. The operation is simple and the Chinese and English languages are available.
- Suitable materials:
Aluminum,Copper,Titanium,Nickel,Iron,Galvanized sheet,White steel,Titanium plate,Carbon steel,Stainless steel,Alloy steel,Composite metal
Main Parameters - Ductwork Fiber Laser Cutting Machine
| Item |
Content |
| Laser Power |
1000w/1500w |
| Working table |
1.5*6m |
| Max cutting Thickness |
Carbon steel 8mm
Stainless steel: 3mm
|
| Position accuracy |
0.03mm |
| Max testing speed |
100m/min |
| Min line width |
0.1mm |
| Output power |
6kw |
| Input power |
220V |
Applicable industries - Ductwork Fiber Laser Cutting Machine
Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building,Military industrial,Wind power,Structural Steel,Boiler containers,Agriculture Machinery,Chassis electrical cabinets,Elevator manufacturers,Textile Machinery,Environmental protection equipment,ect.
